CATALOG
Parts List
Part Number
Description
Drawing
A1501T0P-2
Crimp Terminal:Tin-Plated
PDF
A1501H00-NP
Single Row Housing
PDF
A1501WV0-NP
180° Wafer DIP Type
PDF
A1501WR0-NP
90° Wafer DIP Typer
PDF
A2001WV0-S-NP
180° Wafer SMT Type
PDF
A1501WR0-S-NP
90° Wafer SMT Type
PDF

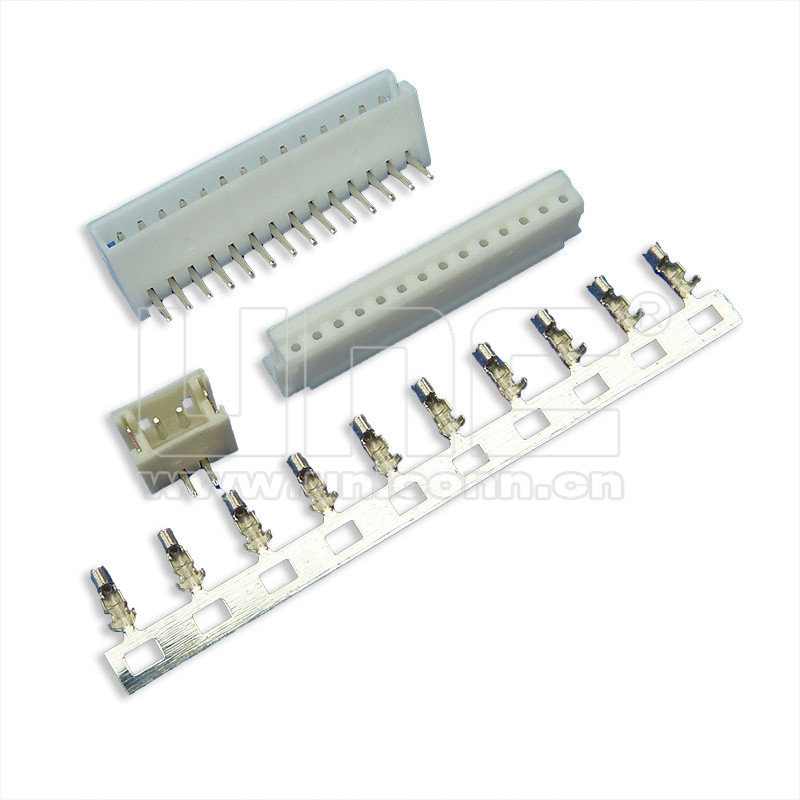

A1501
Current Rating: 1A AC, DC
Voltage Rating: 100V AC
Contact Resistance: 20MΩ Max.
Insulation Resistance: 1,000MΩ Min.
Withstanding Voltage: 800V AC/minute
SPECIFICATION SHEET
DIP Type
SMT Type
